TE Connectivity

Physical & Electrical Properties Material:
ETP copper alloy C11000

Plating:
Electro tin plate

Heat treating:
Soft tempered

Voltage Rating:
For applications up to 35 kV consult shielded cable manufacturers stress relief instructions.

Agency approvals (when crimped with the approved die sets): Listed by Underwriters Laboratories, Inc. File No. E13288, Compression terminal connectors comply with the requirements of UL486A and CSA C.22.2 NO. 65-93.

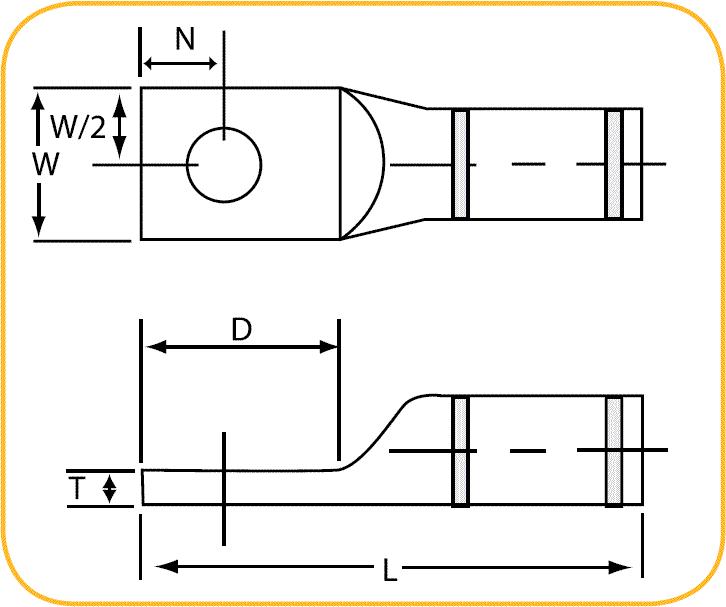

		One Hole, Short Barrel

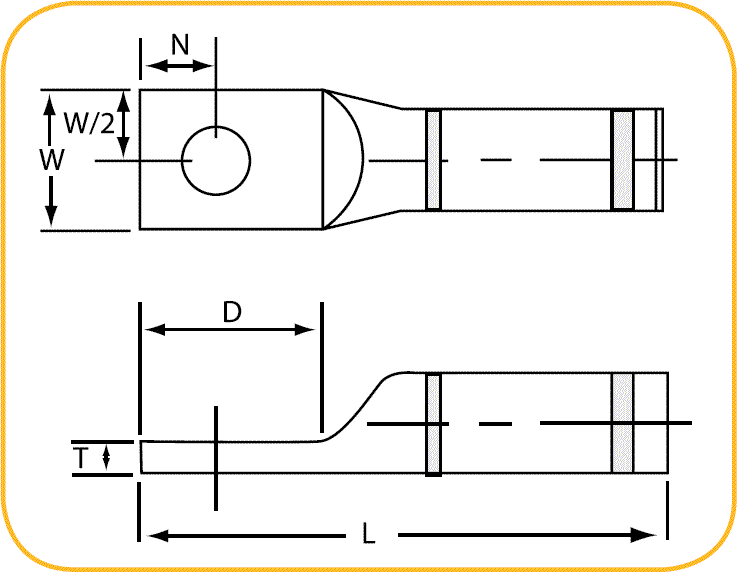

		One Hole, Long Barrel

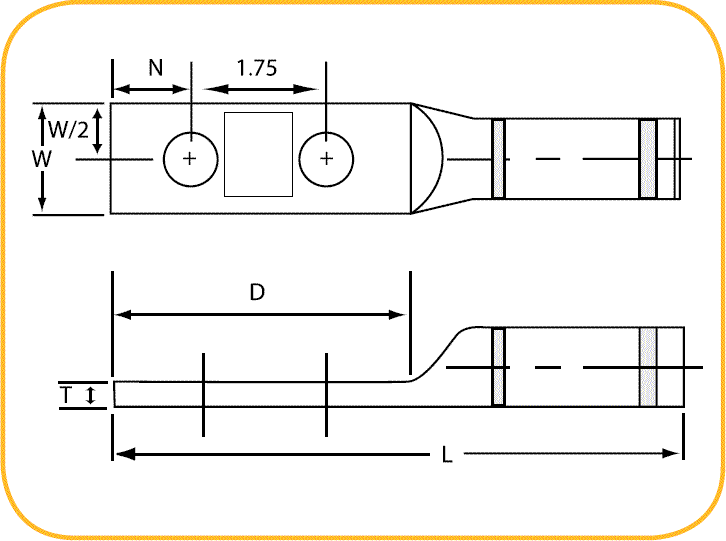

		Two Hole NEMA, Long Barrel
