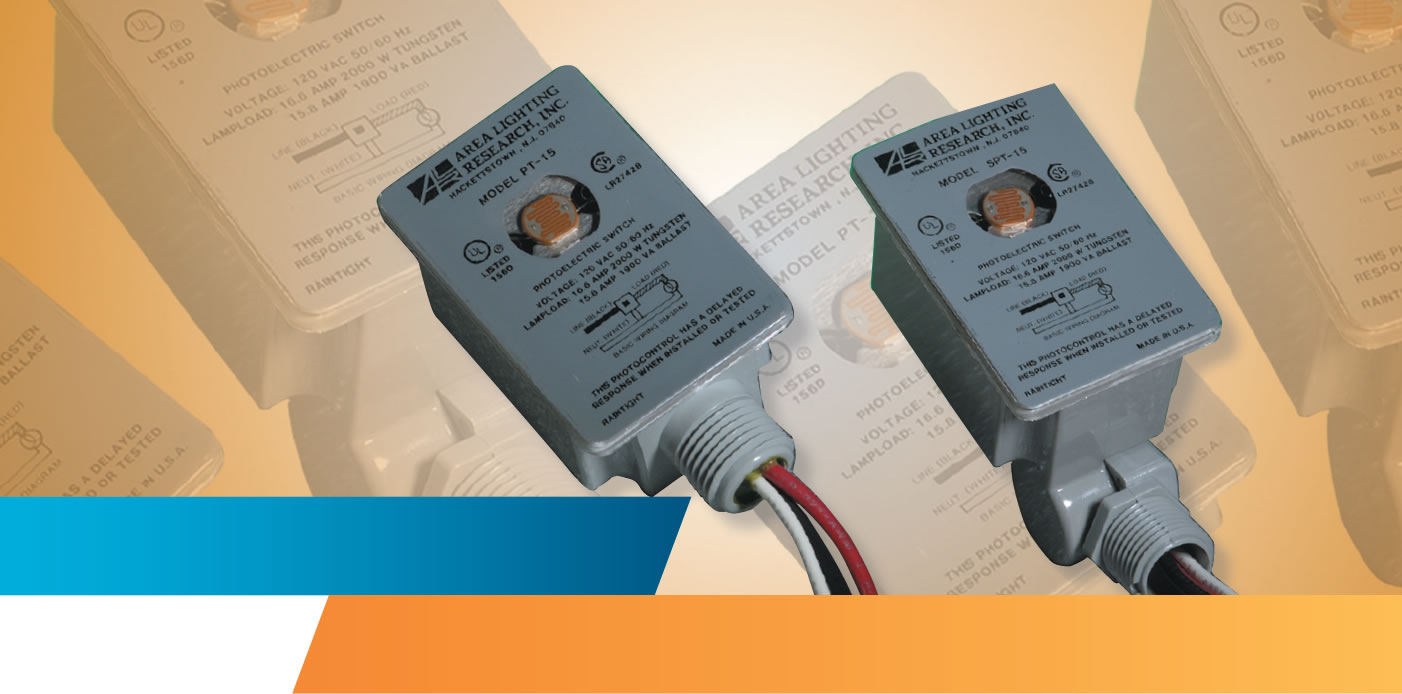

PT/SPT Series Photocontrol
Non-Metallic Housing
Tyco Electronics PT/SPT Series
offers a durable control with an
optional swivel base allowing
maximum mobility for installation.
Features
• Fixed or Adjustable Swivel Base
• Heavy-Duty Thermal Bi-Metal Switch
• UL Listed
• 30-45 Second Time Delay
• 2000 Watt Rating
• Fail Mode is ON
Innovative Design
The PT/SPT Series controls combine the
superior performance of the AT Series
with an economical, yet highly durable,
polycarbonate housing.
Key Benefits
Controls include a heavy-duty bi-metal
switch that provides a 30-45 second
time delay. This virtually eliminates
unwanted lamp cycling that could be
caused by lightning, car headlights,
or other sudden changes in ambient
light level.
Although the Turn-On level is pre-set
at the factory, each PT and SPT control
is furnished with an adjustable slide
bar that allows field adjustment to
satisfy specific needs. The SPT is also
equipped with an adjustable swivel base
to provide installation flexibility.
Common Uses for the AT Series
• Billboard Lighting
• Commercial or Residential Use
Tyco Electronics’ photocontrols can
be used to safely control luminaries
with incandescent, HID, or compact
fluorescent lamps. |
